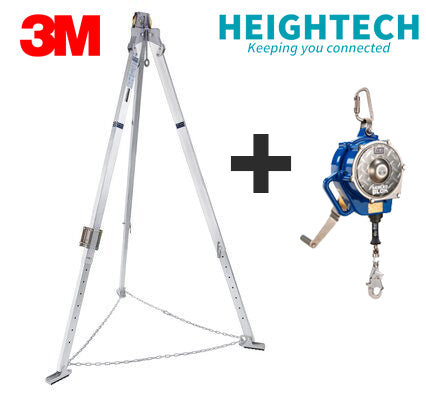

3M DBI Sala 7ft (2.1m) Aluminium Tripod w/ 15m Type 3 Fall Arrestor
Vendor:
3M DBI SALA
SKU:
8000000-3400956
Details 2.1 m aluminium tripod Telescoping adjustable locking legs Built-in pulley system Rubber safety shoes with spiked edges Safety leg support chain 22 kN eyebolt anchor points Quick connect winch/SRL...
- $10,709.95
- $10,709.95
- Unit price
- per
Description
xDetails
- 2.1 m aluminium tripod
- Telescoping adjustable locking legs
- Built-in pulley system
- Rubber safety shoes with spiked edges
- Safety leg support chain
- 22 kN eyebolt anchor points
- Quick connect winch/SRL mount bracket
- Equipped with i-Safe™
7 ft. (2.1 m) aluminum tripod with adjustable locking legs, safety chain, safety shoes, top pulley and quick-mount bracket.
When it comes to confined space entry/rescue, it is essential that equipment operates perfectly and quickly. DBI-SALA® has an extensive line of rescue and retrieval systems with decades of proven field service. Safety engineers and site directors trust DBI-SALA® for the type of high quality, rugged systems that will ensure top performance when it is needed the most. Our aluminum tripods are extremely lightweight and portable, easily set-up by one worker and can be transported from one location to another. Ideal for confined space entry and emergency rescue applications, they can accommodate a variety of winches and fall arrest devices. Our tripods are loaded with features such as locking legs, simple detent pin style adjustment, quick-mount mechanical device bracket, safety chain to prevent movement and safety shoes that incorporate a rubber sole for flat surfaces and spiked edges for slippery surfaces.
Specifications
| Attribute Name | Value |
|---|---|
|
Brand
|
Advanced™
|
|
Case Quantity
|
1
|
|
Color
|
Silver
|
|
Install Type
|
Portable
|
|
iSafe Equipped
|
Yes
|
|
Length
|
7 Feet
|
|
Product Series
|
Advanced™
|
|
Product Type
|
Aluminum Tripod
|
|
Recommended Industry
|
Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities
|
|
Standards/Approvals
|
ANSI Z117.1, ANSI Z117.1-1995, OSHA 1910.146, OSHA 1910.66, OSHA 1926.502
|
|
Weight
|
19.5 kg, 43 lb.
|
|
Weight Capacity
|
350 lbs. (159 kg)
|
|
Order Number
|
70007488417
|
Sealed-Blok Retrieval SRL Mounting Bracket
-
PRODUCT HIGHLIGHTS
-
Retrieval SRL Quick-mount bracket
-
Offers a quick mount system to tripod
-
Durable stainless steel construction
-
Compact and lightweight design
-
Designed to fit all DBI-SALA Sealed-Blok™ Retrieval SRL models
-
Locking pin and mounting bolts included
Overview:Brand DBI-SALA® iSafe Equipped No Model 3401025 Product Styles Mounting Bracket Product Types Accessory - Confined Space Order Number 70007452256 -
3M DBI- Sala Sealed-Block Self Retracting Type 3 Lifeline 15m Stainless Steel Cable
PRODUCT HIGHLIGHTS
-
Environmentally sealed dynamic components
-
3-way emergency retrieval system
-
Extremely durable construction
-
15m of 5mm stainless steel cable lifeline
-
Fast-Line™ lifeline system
-
Anti-ratcheting locking system
-
Built-in carrying handle
-
Swiveling stainless steel snap hook with impact indicator
-
Large pivoting anchorage loop
-
Anchorage karabiner
-
Reserve lifeline system
-
Ergonomic cable handle equipped with i-Safe™
Overview:
These Sealed-Blok™ self retracting lifelines (SRL’s) incorporate a patented concept that separates all dynamic components, including the motor spring and brake, from foreign elements such as grease, moisture and dirt. You can always trust your SRL to work at peak efficiency without worrying about the environment you're working in. Our sealed SRLs are backed by decades of proven field service for absolute confidence, safety and reliability. An SRL’s lifeline will extend as the user moves away, and retract automatically enabling the user to move about within a recommended working area at normal speeds. Should a fall occur, a speed sensing brake system will activate stopping the fall and reducing the forces imposed on the user to safe levels.
| Capacity | 190kg |
| Brand | DBI-SALA® |
| Sub Brand | Sealed-Blok™ |
| Size | 15m |
| Velocity Ship | No |
| iSafe Equipped | Yes |
| Lifeline Length | 15m |
| Housing | Aluminum, Stainless Steel |
| Label | Mylar with Laminate |
| Lifeline | 5mm dia. 7x19 Stainless Steel Aircraft Wire Rope |
| Anchorage Hook | Stainles Steel |
| Lifeline Hook | Stainles Steel |
| Model | 3400956 |
| Physical Dimensions | 338.00x292.00x239.00 (mm) |
| Physical Weight | 13.20 kg (29.1lbs) |
| Product Styles | Single Lifeline 3-Way Self Retracting Lifeline |
| Product Types | Sealed Design 3-Way Emergency Retrieval |
| Housing Type | Metal |
| Lifeline Type | Stainless Steel Cable |
| Mounting Type | Block to Anchor Point |
| Weight Group | Over 4.5kg |
| Standards | ANSI Z359.14, EN360 & AS/NZS 1891.3. |
| Order Number | 7007452025 |
