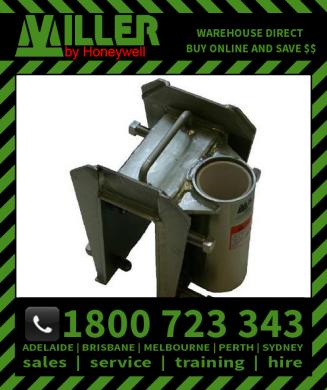

DuraHoist Barrel Mounted Sleeve (Dada DH-5 WSG)
Availability:
1
In stock
Vendor:
Honeywell Miller
SKU:
DH-5
Zinc plated mild steel construction. 3.5” throat opening with 8 independent clamping screws allows temporary installations over edges of shoring cans, walls and other structures, comes with PVC liner. MaterialsGeneral...
- $795.95
$1,914.00- $795.95
- Unit price
- per
Save $1,118.05
Description
xZinc plated mild steel construction. 3.5” throat opening with 8 independent clamping screws allows temporary installations over edges of shoring cans, walls and other structures, comes with PVC liner.
MaterialsGeneral Construction: Welded SteelWeld Certification: AWSStructure Material: A-36 Steel PlateSleeve Material: Sch. 40 PipeSleeve BearingMaterial: PVC PipeASTM-D-1785Thrust BearingMaterial: High Density PolyethyleneFinish (Steel Sleeves): Zinc PlatedPlating Specification: ASTM DesignationB633-85, Type III, SC12
Technical
Rated Capacity: 450lbs (204kg)Working load limit @ minimum 4:1 Design FactorMast MomentProof Load 90,000 in-lbs (10,200 N.m)Mast Rotation 360°Weight 36lbs (16.4kg)
Weights DH-4Base Center 21lbs (9.5kg)Base Legs (x2) 20lbs (9.1kg)Total 61lbs (27.7kg)
Application Restrictions
1. Sleeves are for use with approved masts and accessories ONLY.2. System design factor depends on other system components and the configurations in which they are assembled. The minimum design factor for all standard DuraHoist mast and accessories is 4:1.3. If base material does not meet minimum requirements, reinforcement MUST be added to meet minimum requirements.4. Each installation MUST be approved to local standards by a qualified engineer.
