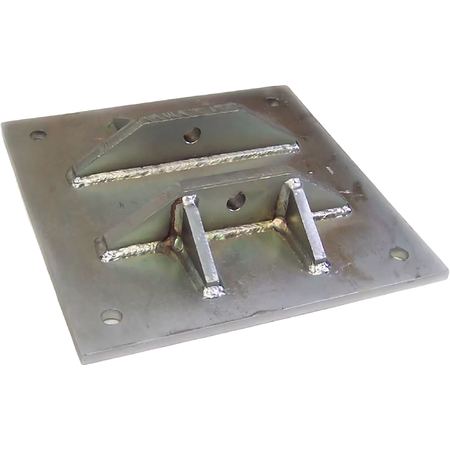

The Bolt on Anchor Plate is designed to be permanently bolted to concrete or other structures in locations of frequent work, or where use of a portable base is impractical. It permanently addresses your fall-arrest anchor point requirements.
Materials
General Construction: Welded SteelWeld Certification: AWS-47.1Material: HR Plate and BarFinish: CS-500 Zinc plated
TechnicalProof Load 190,000 in-lbs (20.8 kN-m)Weight 43lbs (19.5kg)The plate is designed to support the loads required byall portable fall-arrest masts and accessories, wheninstalled and used in accordance with themanufacturers instructions.
Mounting RequirementsDH-AP-12/ Bolt on Anchor Plate:Moment Requirement: 190,000in-lbs (20.8 kN-m)Vertical LoadRequirement: 3100 lbs (13.8 kN)
Application Restrictions1. Ratings, capacities and design factor may vary with system components and configurations. Consult specification sheets for all system components to ensure compliance with requirements.2. Mounting surface must be within 15° of horizontal and plate must be installed so that the portable fall-arrest mast can be leveled for use.3. Each installation must be approved to local standards by a qualified engineer.
