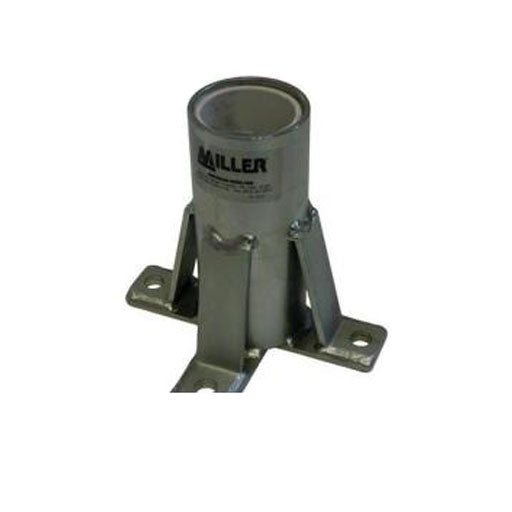

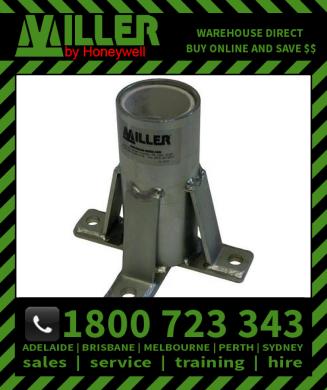

DuraHoist Floor Mounted Sleeve With Zinc Plating (Dada DH-7ZP WSG)
Vendor:
Honeywell Miller
SKU:
DH-7ZP
Zinc plated mild steel construction. Mounts to horizontal concrete or steel structures. Comes with PVC sleeve liner. MaterialsGeneral Construction: Welded SteelWeld Certification: AWSBase Material: A-36 Steel PlateMaterial Structure: Sch.40 PipeSleeve...
- $455.40
- $455.40
- Unit price
- per
Description
xZinc plated mild steel construction. Mounts to horizontal concrete or steel structures. Comes with PVC sleeve liner.
MaterialsGeneral Construction: Welded SteelWeld Certification: AWSBase Material: A-36 Steel PlateMaterial Structure: Sch.40 PipeSleeve BearingMaterial: PVC PipeASTM-D-1785Thrust BearingMaterial: High Density PolyethyleneFinish (Steel Sleeves): Zinc ChromatePlating Specification: ASTM DesignationB633-85, Type II, SC2
Technical
Rated Capacity: 450lbs (204kg) working load limit @ minimum 4:1 Design FactorMast MomentProof Load 90,000 in-lbs (10,200 N.m)Mast Rotation 360°DH-7ZP Weight 13 lbs (5.9kg)DH-7SS Weight 13.5 lbs (6.1kg)Note: Sleeves are designed to withstand the proof load rating of all standard Miller DuraHoist masts.
Mounting Requirements (Minimum)The structure and mounting hardware must be capable of withstanding a 90,000lbs (10,170Nm) moment and a 5,000lb (22.2kN) vertical load. Installation MUST be approved to local regulations by a qualified engineer.
Application Restrictions
1. Sleeves are for use with approved masts and accessories ONLY.2. System design factor depends on other system components and the configurations in which they are assembled. The minimum design factor for all standard MILLER DuraHoist mast and accessories is 4:1.3. All welding is to be carried out by qualified personnel.4. If base material does not meet minimum requirements, reinforcement MUST be added to meet minimum requirements.5. Each installation MUST be approved to local standards by a qualified engineer.
