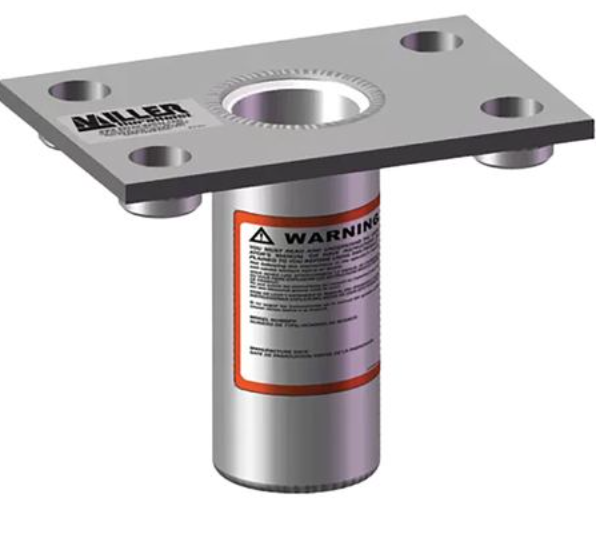

Stainless steel construction. Mounts to horizontal concrete or steel structures. Includes PVC sleeve liner.
Materials
General Construction: Welded Stainless SteelWeld Certification: AWSStructure Material: 304 Stainless Steel PlateSleeve Material: Sch. 40 PipeASTM-D-1785Sleeve BearingMaterial: PVC PipeASTM-D-1785Thrust BearingMaterial: High Density PolyethyleneFinish(Stainless Sleeves): Sand Blasted
Technical
Rated Capacity: 450lbs (204kg) working load limit @ minimum 4:1 Design FactorMast MomentProof Load 90,000 in-lbs (10,200 N.m)Mast Rotation 360°DH-20ZP Weight 24 lbs (10.9kg)DH-20SS Weight 25 lbs (11.4kg)Note: Sleeves are designed to withstand the proof load rating of all standard DuraHoist masts.
Mounting Requirements (Minimum)The structure and mounting hardware must be capable of withstanding a 90,000 in-lbs (10,170Nm) moment and a 5,000lb (22.2kN) vertical load. Installation MUST be approved to local regulations by a qualified engineer.
Application Restrictions
1. Sleeves are for use with approved masts and accessories ONLY.2. System design factor depends on other system components and the configurations in which they are assembled. The minimum design factor for all standard DuraHoist mast and accessories is 4:1.3. All welding is to be carried out by qualified personnel.4. If base material does not meet minimum requirements, reinforcement MUST be added to meet minimum requirements.5. Each installation MUST be approved to local standards by a qualified engineer.
