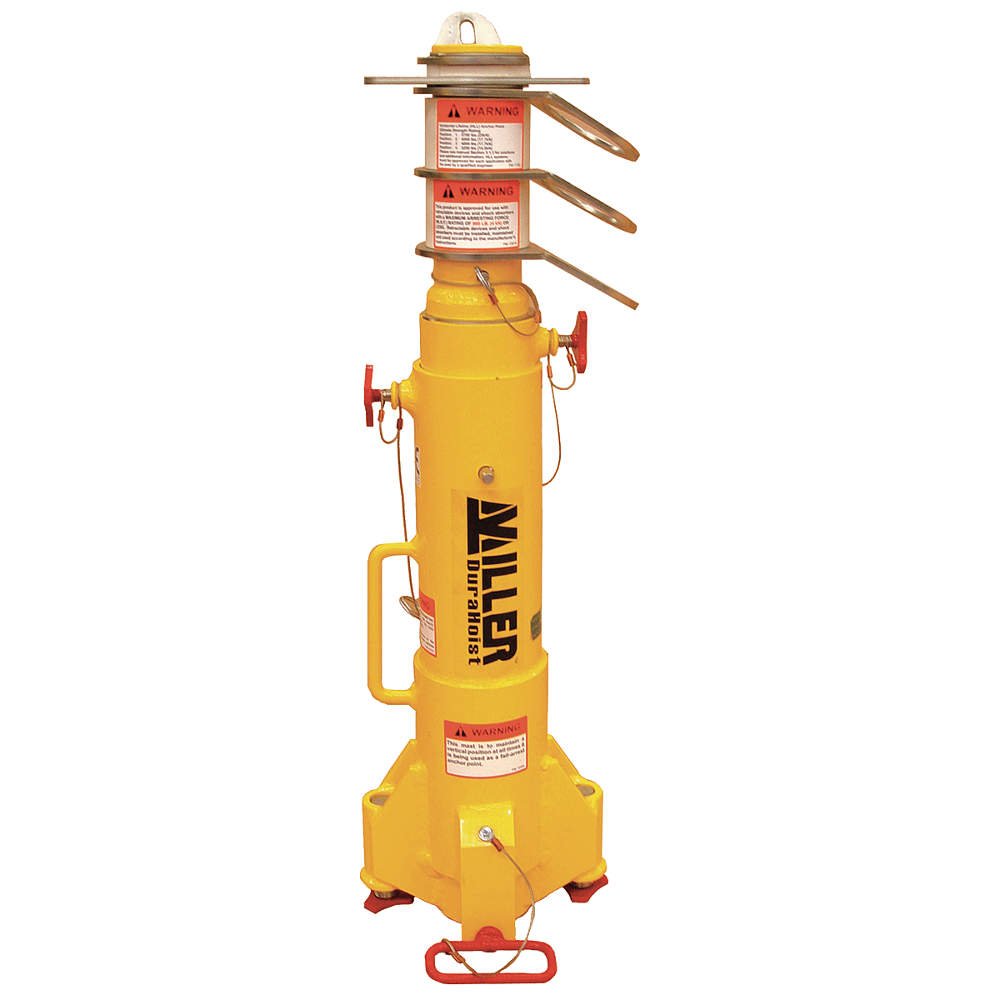

DuraHoist Portable Fall Arrest Anchor Post DH-AP-1
Availability:
Out Of Stock
Vendor:
HoneyWell
SKU:
PIP-DH-AP-1
The Portable Fall-Arrest System Anchor Post provides 3 independant swivelling tie-off points for fall arrest anchorage. Increased height over previous models more than doubles the protection area around the post....
- $5,084.45
$5,084.45- $5,084.45
- Unit price
- per
Save $0.00
Description
xThe Portable Fall-Arrest System Anchor Post provides 3 independant swivelling tie-off points for fall arrest anchorage.
Increased height over previous models more than doubles the protection area around the post.
3-section telescoping design is manufactured from lightweight aluminium, and collapses to only 33 inches (838cm) for transport and storage.
Durable powder coat finish with zinc plated steel components for long corrosion resistance.
Adjustable to compensate for up to 15 degrees of mounting surface incline.
Materials
- General Construction: Welded Steel/Aluminum
- Weld Certification: CWB-47.1, CWB-47.2
- Material (aluminum): 6061-T6 Aluminum
- Finish (aluminum): Powder Coat
- Material (steel): HR Steel Plate, Sch.40 Pipe
- Finish (steel): CS-500 Zinc Plated
- Swivel Rign Brushing: PVC Pipe, ASTM-D-1785
- Hardware: Gr.5, Gr.8 - Zinc Plated
- Plating Specification: ASTM Designation B633-85, Type II, SC2
- CS-500 Leachant/Sealant Process
Technical
- Working Load
- Fall Arrest: 3 Workers using 900lb MAF Shock Absorbers
- Safety Factor: Minimum 2:1
- Material Handling
- (w/ model DH-AP-3
- Davit Arm): 310lbs (141kg)
- Safety Factor: 10:1
- Rescue: 310lbs (141kg)
- Safety Factor: 10:1
- Proof Load: 4200lb (18.7kN) Pulled from 72in (1828.8mm) from post centerline (53deg to vertical)
- Proof Load Moment: 190,000 in-lbs (21.5 kN-m)
- Horizontal Lifeline Anchor
- Point Proof Load: See Page 2
- Proof Test: AWS
- Weight: 38lbs (17.2kg)
Application Restrictions
- A maximum of three workers may be connected to the anchor post at any one time. Use of various accessories may reduce the number of workers that may be anchored. Consult product specification sheets for all components of any system and be aware of any restrictions before using the equipment.
- The Portable Fall Arrest Anchor Post must be in vertical position at any time it is being use as a fall arrest anchor post.
- The installed anchor post assembly must be 72” (1830mm) or less from any edge where a fall may occur.
- Retractable devices and shock absorbers must have a maximum arresting force (M.A.F) of 900lbs (4kN) or less and must be installed and used in accordance with manufacturer’s instructions.
- The Portable Fall Arrest mast must only be used with appropriate accessories
- Horizontal Lifelines must be installed using the chart on page 2 giving due consideration to strength limitations at various positions.
- The Anchor Post must be used with a tie back in horizontal lifeline applications at any extended height. Failure to follow this instruction may result in serious injury or death.
- Each installation must be approved to local standards by a qualified engineer.
