Products DuraHoist Wall Mounted Sleeve With Zinc Plating (Dada DH-8ZP WSG)
1 2

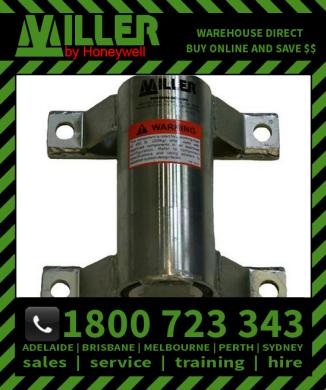

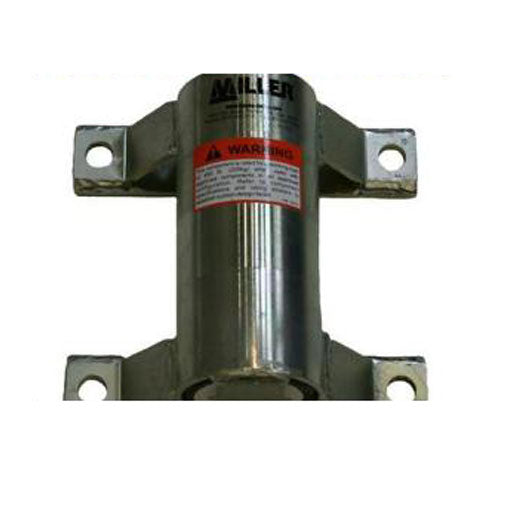

DuraHoist Wall Mounted Sleeve With Zinc Plating (Dada DH-8ZP WSG)
DuraHoist Wall Mounted Sleeve With Zinc Plating (Dada DH-8ZP WSG)

DuraHoist Wall Mounted Sleeve With Zinc Plating (Dada DH-8ZP WSG)

Availability: Out Of Stock
Vendor: HoneyWell
SKU: PIP-DH-8ZP
Zinc plated mild steel construction. Compact design creates minimum intrusion into work space. Mounts to vertical concrete or steel structures. Comes with PVC sleeve liner. MaterialsGeneral Construction: Welded SteelWeld Certification:...
$434.50
$434.50
$434.50
Save $0.00
DuraHoist Wall Mounted Sleeve With Zinc Plating (Dada DH-8ZP WSG)

DuraHoist Wall Mounted Sleeve With Zinc Plating (Dada DH-8ZP WSG)

$434.50
DuraHoist Wall Mounted Sleeve With Zinc Plating (Dada DH-8ZP WSG)
DuraHoist Wall Mounted Sleeve With Zinc Plating (Dada DH-8ZP WSG)

DuraHoist Wall Mounted Sleeve With Zinc Plating (Dada DH-8ZP WSG)

$434.50
Description
Description
x

Zinc plated mild steel construction. Compact design creates minimum intrusion into work space. Mounts to vertical concrete or steel structures. Comes with PVC sleeve liner.

MaterialsGeneral Construction: Welded SteelWeld Certification: AWSStructure Material: A-36 Steel PlateSleeve Material: Sch. 40 PipeSleeve BearingMaterial: PVC PipeASTM-D-1785Thrust BearingMaterial: High Density PolyethyleneFinish: Zinc ChromatePlating Specification: ASTM DesignationB633-85, Type II, SC2

Technical

Rated Capacity: 450lbs (204kg) working load limit @ minimum 4:1 Design FactorMast MomentProof Load 90,000 in-lbs (10,200 N.m)Mast Rotation 360°DH-8ZP Weight 12lbs (5.4kg)Note: Sleeves are designed to withstand the proof load rating of all standard Miller DuraHoist masts.

Mounting Requirements (Minimum)The structure and mounting hardware must be capable of withstanding a 90,000lbs (10,170Nm) moment and a 5,000lb (22.2kN) vertical load. Installation MUST be approved to local regulations by a qualified engineer.

Application Restrictions

1. Sleeves are for use with approved masts and accessories ONLY.2. System design factor depends on other system components and the configurations in which they are assembled. The minimum design factor for all standard DuraHoist mast and accessories is 4:1.3. All welding is to be carried out by qualified personnel.4. If base material does not meet minimum requirements, reinforcement MUST be added to meet minimum requirements.5. Each installation MUST be approved to local standards by a qualified engineer.
