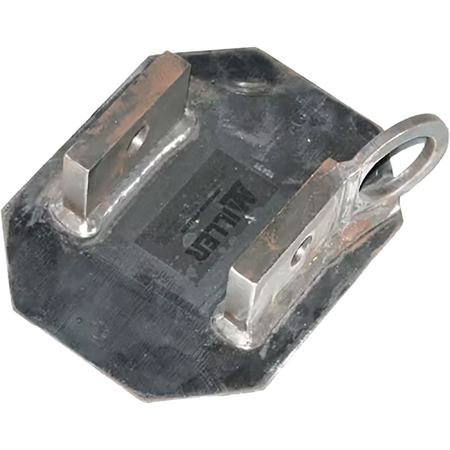

The DH-AP-4 Weld-On Plate With Tie-Off Anchor is designed to be permanently welded to existing structures in locations of frequent work, or where use of a portable base is impractical. Compatible with all DuraHoist portable fall-arrest masts and accessories. The weld-on plate permanently addresses your fall-arrest anchor point requirements.
MaterialsGeneral Construction: Welded Steel
Weld Certification: CWB-47.1
Material (Aluminium): H.R. Plate and bar
Finish (Aluminium Parts): Provided in bare steel for welding
Technical
Proof Load Moment: 190 000 in/lb (20.84 KN.m)
Vertical Load Requirement: 3100 lbs (13.8kN)
Anchor Eye Proof Load: 5000 lbs (22.2kN)
Weight: 11.8 lbs. (5.3 Kgs.)
Application Restrictions
1. This extension is to be used with the DuraHoist Portable Fall-Arrest System Anchor Post only.2. Use of this device derates the portable fall-arrest anchor post assembly to a maximum of two workers tied off to the swivel tie-off rings.3. The installed anchor post and accessories must be 72” (1830mm) or less from any edge where a fall may occur. 4. Portable fall-arrest system anchor post must be in a vertical position any time it is being used as a fall arrest anchor point.5. Rectractable devices and shock absorbers must have a maximum arrest force (M.A.F.) rating of 900 lbs (4KN.) or less, and must be installed and used in accordance with the manufacturer's instructions.6. Each installation must be approved to local standards by a qualified engineer.
