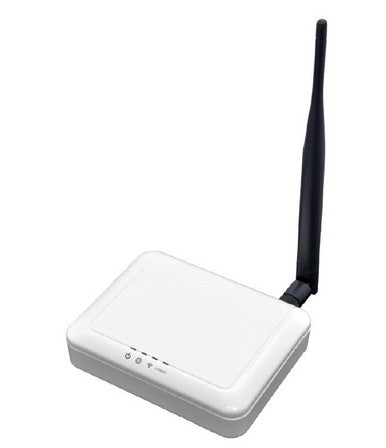

Indoor Femto Gateway (WLRGFM-100)
Vendor:
Gemtek
SKU:
WLRGFM-100
Gemtek has been instrumental in the development of LPWAN system solutions, and is an early provider of LoRaWAN protocol-based, end-to-end LPWAN solutions. The LoRaWAN technology is designed to connect low-cost,...
- $279.95
- $279.95
- Unit price
- per
Description
xGemtek has been instrumental in the development of LPWAN system solutions, and is an early provider of LoRaWAN protocol-based, end-to-end LPWAN solutions. The LoRaWAN technology is designed to connect low-cost, battery-operated sensors over long distances in harsh environments that were previously too challenging or cost-prohibitive to connect. Because of its long range, high penetration and high sensitivity capabilities, it is a much more cost effective way for service providers to deploy LoRaWAN network for sensor applications in vertical market domain.
This Femto Gateway is specifically designed for wide area IoT applications. Applications include, but not limited to home security, automatic meter reading, monitoring fault indicators, monitoring street lights, etc. This gateway is Femto type and very suitable for small business or private area use case like parking space, exhibition center or campus etc. It is also suitable for providing coverage for indoor blind spots.
Model Name: WLRGFM-100Antenna Type: Built-in Wi-Fi antenna and one (1) external SMA LoRa antennaInterfaces: 1 LAN 10/100Mbps, 1 USB 2.0 for upgrade and 3/4G dongle, 4 LED indicatorsDimensions: L:116 x W:91 x H:27 mm
Specifications
- Frequency Band: EU 862~870 MHz / US 902~928 MHz / AS 923 MHz
- Number of Channels: Up to 8 concurrent channels
- Wireless LAN: 802.11 b/g/n 2.4G
- RF Transceiver: SX1301 with SX1257 or SX1255 for CN-470 SKU
- Transmit: RF Power 0.5W (up to 27 dBm)
- Receive Sensitivity: Down to -142 dBm
- Operating Temperature: -10C ~ 55C
- Storage Temperature: -10C ~ 60C
- Power Voltage: 5VDC/2A via mini-USB port
Features
- Compliance to LoRaWAN 1.0.2
- Security: AES 128
- Up to 8 concurrent channels for LoRa transmission
- Built-in 2.4G 802.11b/g/n Wireless LAN
- Patented repeater mode for last mile coverage
- Option support wide frequency range from 470MHz to 928MHz
- Various internet connections: Ethernet, Wireless bridge, 3G/4G dongle (via USB port)
- Active scan for channel availability with RSSI levels
Key Features
x- Experience the unmatched range and reliability of LoRaWAN technology, providing superior signal strength and consistent connectivity even in challenging indoor environments.
This might significantly improve your IoT network performance and reach areas previously inaccessible. - Enjoy the ultimate flexibility with versatile connectivity options: Ethernet, Wireless Bridge, or a 3G/4G dongle (via USB port).
Choose the method that best suits your needs and seamlessly integrate with your existing infrastructure. - Manage up to 8 concurrent LoRa channels for efficient and simultaneous data transmission.
This could significantly reduce latency and improve overall throughput, enabling real-time monitoring and control of your IoT devices. - Benefit from robust AES 128 encryption for secure and protected data transmission, giving you peace of mind knowing your data is safe from unauthorized access.
This could help safeguard sensitive information from potential threats. - Appreciate the ease of use with a compact and intuitive design, featuring 4 LED indicators providing clear and real-time status updates.
This could simplify your setup and management, saving you valuable time and resources.
The patented repeater mode extends your coverage even further, eliminating blind spots for seamless connectivity.
Specifications
x| Sku | WLRGFM-100 |
| Model name | WLRGFM-100 |
| Antenna type | Built-in Wi-Fi antenna and one (1) external SMA LoRa antenna |
| Interfaces | 1 LAN 10/100Mbps, 1 USB 2.0 for upgrade and 3/4G dongle, 4 LED indicators |
| Dimensions | L:116 x W:91 x H:27 mm |
| Frequency band | EU 862~870 MHz / US 902~928 MHz / AS 923 MHz |
| Number of channels | Up to 8 concurrent channels |
| Wireless lan | 802.11 b/g/n 2.4G |
| Rf transceiver | SX1301 with SX1257 or SX1255 for CN-470 SKU |
| Transmit power | 0.5W (up to 27 dBm) |
| Receive sensitivity | Down to -142 dBm |
| Operating temperature | -10ºC ~ 55ºC |
| Storage temperature | -10ºC ~ 60ºC |
| Power voltage | 5VDC/2A via mini-USB port |
