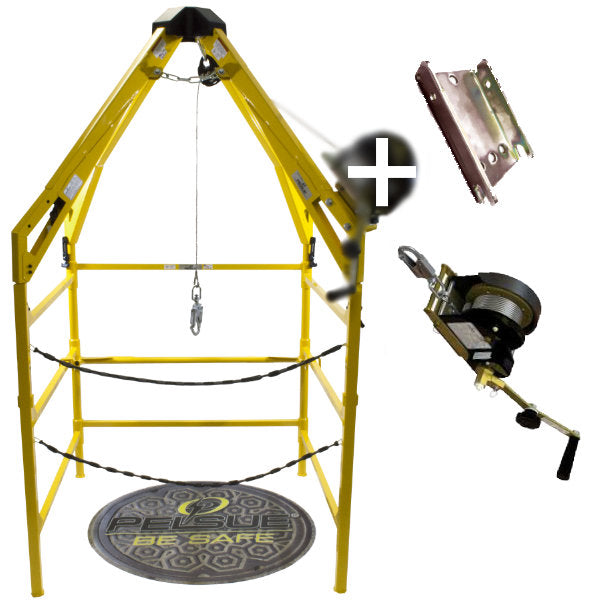

LifeGuard System (LG5A) & Pelsue 70"/ -30m S/S cable man rated winch 140kg
Availability:
Out Of Stock
Vendor:
Pelsue
SKU:
PLS-LG5A-PH07C
LifeGuard System - 42" W x 42" L x 75" H - heavy-duty, leveling feet LifeGuard Confined Space Safety System Fall Protection The Pelsue LifeGuard System is our flagship fall...
- $7,975.00
$7,975.00- $7,975.00
- Unit price
- per
Save $0.00
Description
xLifeGuard System - 42" W x 42" L x 75" H - heavy-duty, leveling feet
LifeGuard Confined Space Safety System
Fall Protection
The Pelsue LifeGuard System is our flagship fall protection system for confined space applications. The system provides anchorage for hoists and SRLs for use in fall protection and rescue, while also acting as a barricade to prevent people from accidentally falling or slipping into the confined space.
It can be quickly and easily placed around a manhole, where its durable, structural grade aluminum and steel frame prevents workers from getting too close, while the safety chains allow for easy access to the manhole. The system effortlessly collapses into two different assemblies, and a carrying case is included for the upper assembly, allowing for easy transport and storage.
When deployed, the system is compact, occupying 3.5’ x 3.5’ (LG5A) or 4’ x 4’ (LG5X) and is perfect for applications where space is limited.
It can rapidly be deployed by a single person in minutes, making it an invaluable solution when a rescue is required.
There are dual anchor points located on the top assembly, allowing you to simultaneously connect a hoist and an SRL to the system. The system includes one hoist bracket and mounting plate. A secondary bracket location is already set up to allow for quick and easy installation if you are using a secondary hoist or SRL. When you need both rescue and fall protection capabilities, you can rely on the LifeGuard.
With a heavy-duty frame and attachments for both a hoist and an SRL, the Pelsue LifeGuard System is the ultimate 3-in-1 solution.
The upper assembly and lower assembly are attached via flexible draw latches, anchoring the two together. To prevent movement while in use, all 4 feet are encased in rubber bottoms.
The LifeGuard is made in Colorado, USA and meets or exceeds OSHA and ANSI standards.
PH07C
70" stainless steel cable
The Pelsue Personnel Hoists are designed and tested as retrieval and lifting devices as defined in OSHA Safety Standards for attaching a person that is entering or exiting a confined space. The Personnel Hoists hoists are made in America with the highest quality materials to ensure the system will provide you years of service.
FEATURES:
- Man rated to 310 lbs.
- Secondary “overspeed” brake
- 5.5:1 gear ratio single speed drive
- Retrieval rate of 23′ per minute
- Double pawls on friction brake provide back-up safety
- Low wear, high temperature brake pads require minimal maintenance
- Anti-friction drive bearings assure trouble-free life in continuous use
- Continuous braking drive prevents freewheeling
- Three permanent wraps of cable on the drum to assure low cable attachment loads
- Tensioner pad prevents loosening of cable lays
- Slip clutch drive prevents back winding of cable drum
- Zinc-plated and anodized aluminum components reduce corrosion in harsh environments
- Can be quickly and easily mounted
- Available with stainless steel cable or synthetic rope
- Removable drive handle with speeder knob
- Gear teeth cover
- Soft-sided carrying case included
