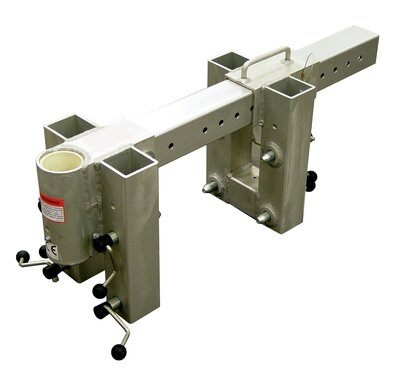

Miller DuraHoist Adjustable Mounting Barrel Sleeve DH-6
Availability:
Out Of Stock
Vendor:
HoneyWell
SKU:
PIP-DH-6
The Adjustable Barrel Mounting Sleeve is designed for shoring, wall and parapet applications where frequent setup over varying wall thicknesses is required. Standard unit accommodates wall thickness up to a...
- $4,948.95
$4,948.95- $4,948.95
- Unit price
- per
Save $0.00
Description
xThe Adjustable Barrel Mounting Sleeve is designed for shoring, wall and parapet applications where frequent setup over varying wall thicknesses is required. Standard unit accommodates wall thickness up to a maximum of 24”. Anodized, welded aluminum with zinc plated steel hardware for lightweight durability. Comes with PVC sleeve liner.
Materials
General Construction: Welded AluminumWeld Certification: AWSBase Material: 6061-T6 AluminumSleeve Material: C.R. SteelSleeve BearingMaterial: PVC PipeASTM-D-1785Thrust BearingMaterial: High Density PolyethyleneFinish: High Density PolyethylenePlating Specification: ASTM DesignationB633-85, Type III, SC12
TechnicalRated Capacity: 450lbs (204kg) working load limit @ minimum 4:1 Design FactorMast MomentProof Load 90,000 in-lbs (10,200 N.m)Mast Rotation 360°Weight 56lbs (25.4kg)Note: Sleeves are designed to withstand the proof load rating of all standard DuraHoist masts.
Mounting Requirements (Minimum)1. Steel Drums/Bulkheads Thickness ½” to 24” (13mm to 610mm)2. Excessive wall taper can cause the retaining screws to slip. Each installation MUST be certified by the installing engineer. Wall in excess of 1 degree from vertical on either wall must be modified to meet this specification.3. The structure in the area of the clamp MUST withstand a 90,000in-lbs (10,170Nm) moment without deformation. Each installation MUST be certified by the installing engineer.Application Restrictions1. Sleeves are for use with approved masts and accessories ONLY.2. System design factor depends on other system components and the configurations in which they are assembled. The minimum design factor for all standard DuraHoist mast and accessories is 4:1.3. If base material does not meet minimum requirements, reinforcement MUST be added to meet minimum requirements.4. Each installation MUST be approved to local standards by a qualified engineer.
