Rock Exotica VX2 Vortex Multipod Tripod Set (VX2SET)
Availability:
Out Of Stock
Vendor:
Rock Exotica
SKU:
SCE-VX2SET
The Arizona Vortex is the ultimate artificial high directional system (AHD) that adapts to almost any terrain or set-up location. The Vortex can be set up in multiple configurations including...
- $9,500.00
$9,500.00- $9,500.00
- Unit price
- per
Save $0.00
Description
xThe Arizona Vortex is the ultimate artificial high directional system (AHD) that adapts to almost any terrain or set-up location. The Vortex can be set up in multiple configurations including tripod, bi-pod and monopod. Separately the two heads create an a-frame, gin pole, a combination of the two, as well as a multitude of other configurations.
The Vortex can be used in a variety of situations including mountain and confined space rescue as well as rope and work access. Many companion products exist to extend the functionality of the Vortex, such as the Omni-block, AZTEK, Kootenay and AZORP, which allow it to meet virtually any requirement for a portable AHD system.
Other features of the Arizona Vortex Multipod include:-
the A-Frame joiner section and gin pole head can be used together or as separate AHDs the smallest adjustment increment across the system is only 7.6cm making it ideal for difficult confined space and USAR operations.
WLL is around 450kg
Can be fitted with two different types of feet: Raptor and Flat
A-Frame head can be be fitted with ‘head set sheaves’ for an ultra low gain system (maximising head height in a lift) all parts are available separately and are replaceable
The basic frame includes both the A-Frame and Gin Pole Heads, three Upper Legs and seven lower Legs. The feet three Flat Feet and three Raptor Feet, and a bag set to carry everything!
Part Number: 164155
VORTEX COMPONENTS
Min Height: 9 ft (2.7 m)Max Height (with additional legs): 12 ft (3.7 m)Weight (with both feet sets): 72 lb (33 kg)MBS: 36kNCertification: CE
WHAT’S IN THE BOX1 x Gin Head1 x A-Frame heads1 x Headset pulley wheel4 x Headpins3 x Upper legs7 x Lower legs11x Leg Pins3x Flat Feet3x Raptor Feet1x Bag SetInstruction Manual
A-FRAME JOINER (VXAF)The A-Frame attaches to the Gin Pole Head to construct the standard Vortex tripod configuration. The A-Frame with legs attached to both sides is also used as a standalone bi-pod rigging piece. The Lower legs can now be used to connect directly to the A-Frame by inserting the bottom end (stud) of the Lower Leg into the A-Frame. A pulley, Omni-Block, or pulley sheave connects directly to the A-Frame with a quick release pin to increase the effective height of the Vortex.
Weight: 5.2 lbs (2.3 kg)Length: 16.4″ (41.7cm)Width: 3.9″ (9.8cm)Height: 6.5″ (16.5cm)
GIN POLE HEAD (VXGH)The Gin Pole Head is connected to the A-Frame with the Head Pins to construct the standard Vortex tripod configuration. Many times, the Head is used with a Vortex Leg and Foot to construct a gin pole.
Weight: 2.2 lbs (1 kg)Length: 8.4″ (21.2cm)Width: 5″ (12.7cm)Height: 3″ (7.6cm)
UPPER LEG (VXUL)The Upper Leg of the Vortex typically attaches to the A-Frame and fits within the Lower Leg. It can be positioned with the Lower Leg to adjust to different heights as needed. May also be used to attached two Lower Legs and directly to the feet of necessary
Weight: 4.7 lbs (2.1 kg)Length: 38.5″ (98cm)Diameter: 2.0″ (5cm)
LOWER LEG (VXLL)The Lower Leg of the Vortex typically attaches to the feet with the permanently attached stud on the bottom. This piece may also be reversed and attach to the A-Frame
Weight: 5.5 lbs (2.5 kg)Length: 41.5″ (105cm)Diameter: 2.35″ (6cm)
HEAD & LEG PUSH PINSUsed for connecting the components of the Vortex, the steel Head and Leg pins are strong, compact and quick to use. Rated at 80kN.
LEG PIN / HEAD PINVXQR375 / VXQR500Weight: 43 gm (1.5 oz) / 68 gm (2.4 oz)Length: 98 mm (3.9”) / 81 mm (3.2”)Diameter: 9.4 mm (.37”) / 13 mm (.5”)
RAPTOR FOOT (VXRF)The Raptor Foot features a replicable carbide tip designed to reach into small holes or cracks for optimal grip even on uneven surfaces. Foot rotation is adjustable to allow correct orientation of the claw relative to the configuration of the Vortex. Two holes and a slot are machines into the Raptor Foot to accommodate other means of anchoring
Weight: 1 lbs (470 gm)
FLAT FOOT (VXFF)The Flat Foot features a rubber layer on the bottom to provide optimal grip on flat surfaces. Four Anchor points in each corner of the foot, as well as a hole in the leg, allow for a variety of anchoring/hobbling options.
Weight: 3 lbs (1.3 kg)

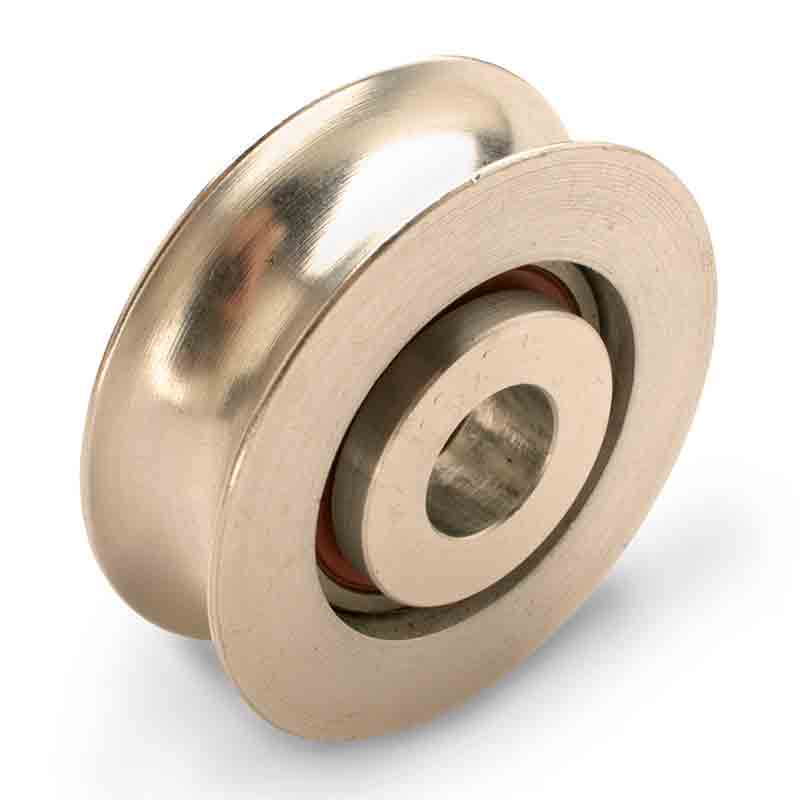

HEADSET PULLEY WHEEL (VXHPW)For attachment to the Vortex A-frame using a headpin. 38 mm (1.5”) pulley wheel saves rigging space and is lightweight. Uses high-efficiency bearing

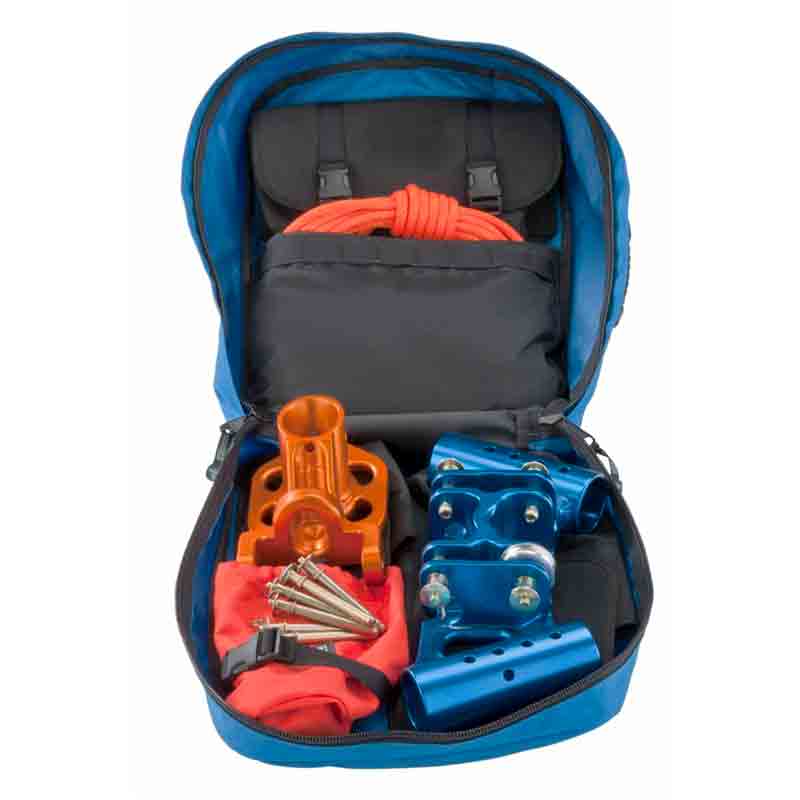

BAG SET (VXBAGS)Made from durable Cordura Nylon, the vortex Bag Set provides a fitted protective cover for a complete Vortex Set and two sets of feet.
3 x Outer Leg Bags1 x Inner Leg Bag1 x Head Set Bag1 x Foot Sets Bag1 x Pin(s) Bag
