The SafetyLink Patented RetroLink can be installed onto a metal C or Z purlin, where no access is available from underneath the roof.
- Easy Installation into concealed areas.

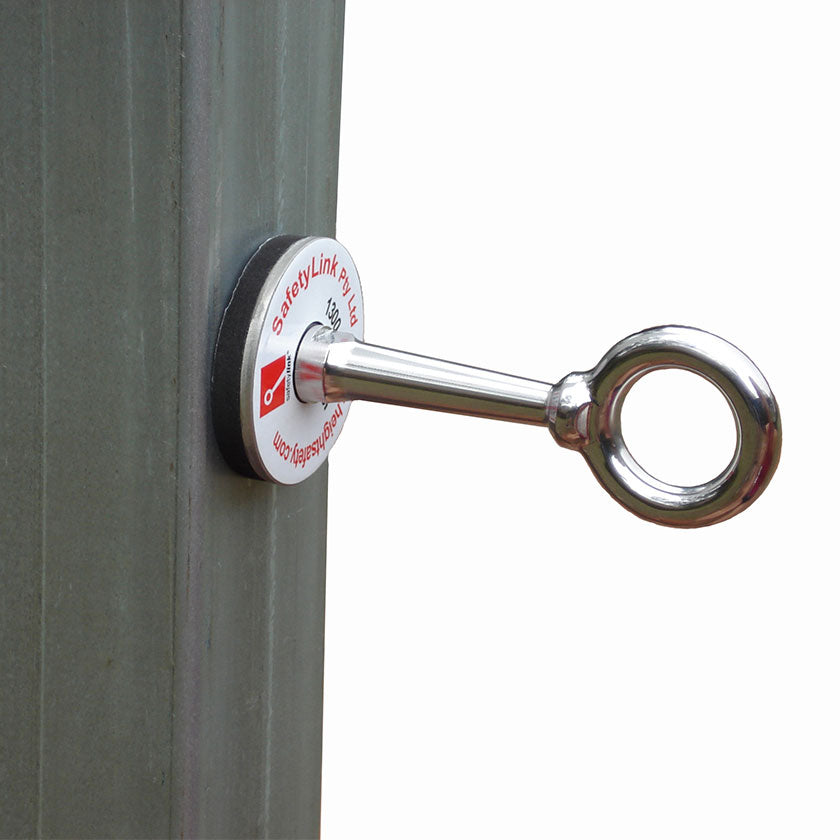

- Fits to Steel Columns and Beams, no access is required.
- Versatile unit accommodating any 16mm threaded component.
SafetyLink RetroLink anchors installed to the raised section of roof sheet profiles are not suitable for rope access/abseiling due to potential roof sheet distortion under live loadings.
The anchor is a fall arrest anchor with an unobtrusive design that requires no special tooling and minimal penetration to the roof sheeting.
The RetroTube and Washer component can also be used as a versatile unit accommodating any 16mm threaded component.
Installation is a simple process requiring only one hole to be drilled into the roof sheeting and through the purlin, a waterproofing washer combined with an o ring seals the hole.

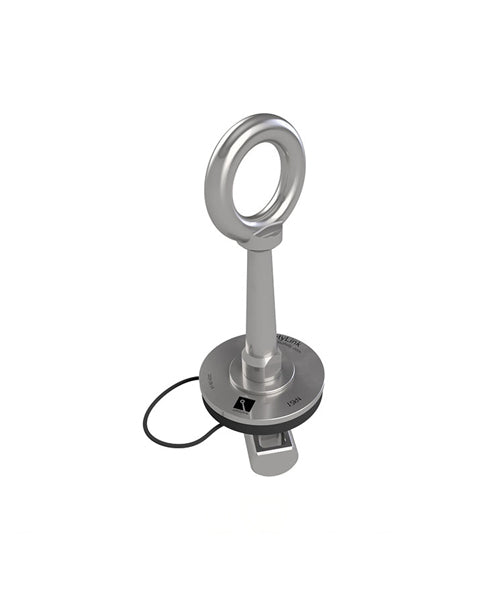

The SafetyLink Retro Eyebolt is tested to AS NZS 5532-2013 standards and rated to 15kN. It is designed to bend like a fishing pole reducing the load back on the structure and the person attached to the anchor.
WHAT AM I USED FOR?

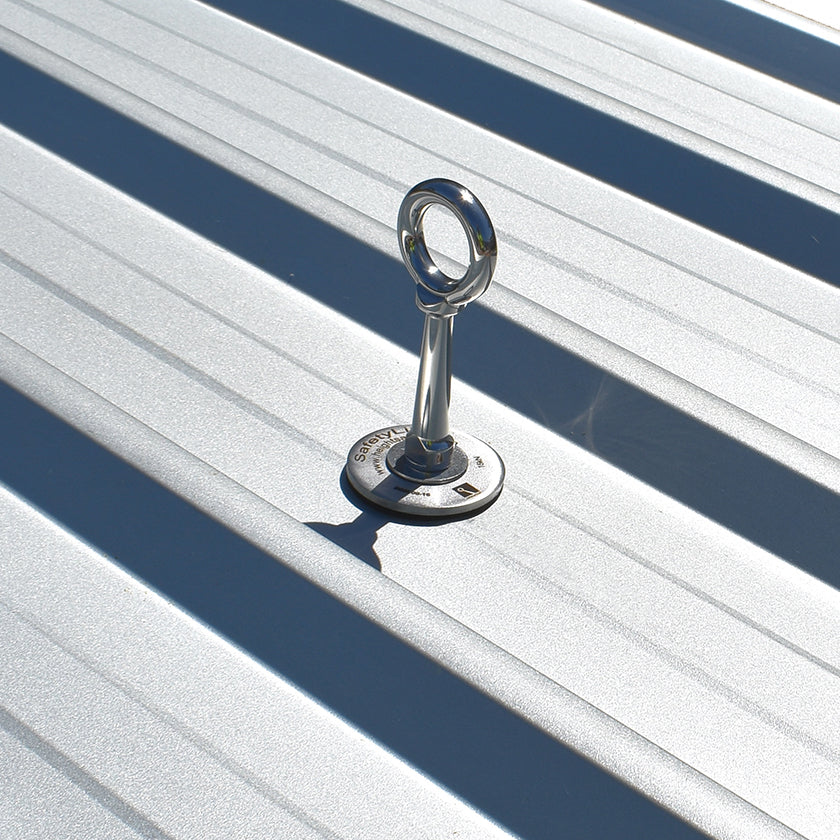

An anchor point designed for use on metal roofing/steel purlin structure.Installation is a simple task requiring no access from underside of the roof.
- Fits to the profile of the roof sheeting.
- For use on metal roof/steel purlin structures.
- 316 Stainless steel construction.
- Multi-directional fall protection.
- Single person anchor.
- Rated at 15kN.
- Complies with: AS/NZS 1891.4 EN 795:2012, CEN/TS 16415:2013 AS/NZS 5532-2013
