The testo 104-IR BT penetration thermometer with integrated infrared sensor is a versatile measuring instrument for quick and reliable temperature checks in hectic daily practice and is particularly suitable for checks as part of HACCP processes.
The testo Smart App connection makes digital documentation, and especially temperature limit monitoring (CP/CCP) easier than ever.
Details
The testo 104-IR BT enables non-contact measurement of surface temperatures and also offers the option of measuring the core temperature if upper or lower limit values are violated. All measurement values are automatically transmitted to the testo Smart App via Bluetooth - reliably and securely.

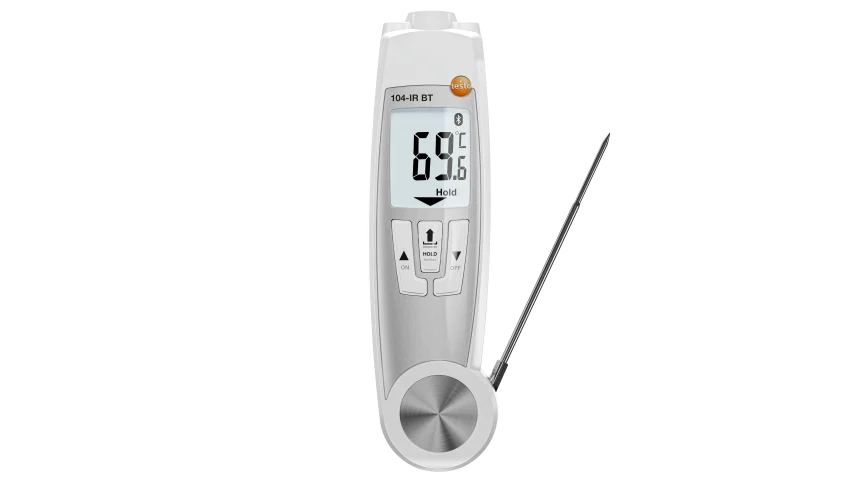

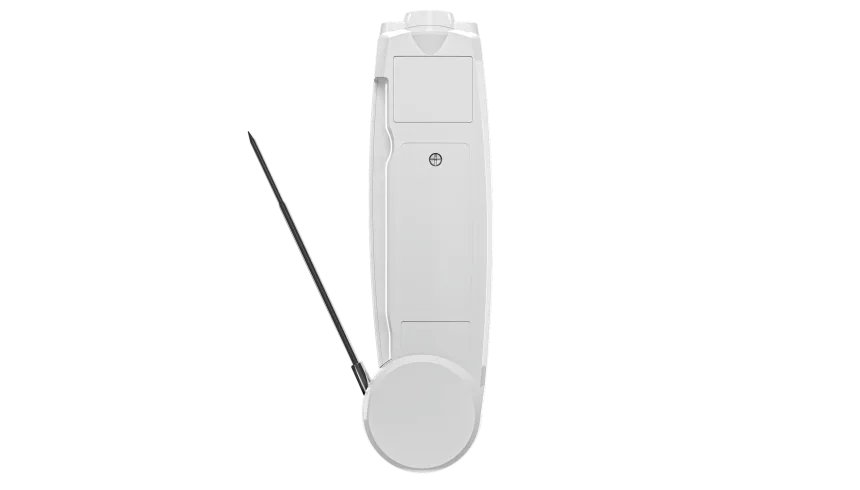

The compact instrument's penetration probe is safely stowed away in the housing . The instrument is activated as soon as the penetration probe is folded out. The infrared measurement starts immediately at the touch of a button. The measurement results are very easy to read on the large display, the few buttons are self-explanatory and can be operated easily without much training.Another practical advantage: The penetration/infrared thermometer is waterproof (IP65).Thanks to its functionality and user-friendliness, the testo 104-IR BT enables efficient and precise temperature measurement without time-consuming processes or compromises.With this instrument, you have full control over all temperature measurements in the food sector and can ensure the quality of your products:
Technical Data
Temperature - NTC |
Measuring range
-50 to +250 °C
|
|---|---|
|
Accuracy
±1.0 °C (-50 to -30.1 °C)
±1 % of mv (+100 to +250 °C)
|
|
|
Resolution
0.1 °C
|
|
|
Reaction time
t₉₉ = 10 s (measured in moving liquid)
|
|
|
Measuring rate
0.5 s
|
|
Temperature - Infrared |
Measuring range
-30 to +250 °C
|
|---|---|
|
Accuracy
±2.5 (-30.0 to 20.1 )
±2.0 °C (-20.0 to -0.1 °C)
±1.5 °C or ±1.5 % of the measurement value (+0.0 to +250.0 °C)
|
|
|
Resolution
0.1 °C
|
|
|
Measuring rate
0.5 s
|
|
| Class 2 / DIN EN 60825-1:2007 | |
General technical data |
Weight
207 g (incl. batteries)
|
|---|---|
|
Operating temperature
-20 to +50 °C
|
|
|
Product-/housing material
ABS / TPE / PC, diecast zinc, stainless steel
|
|
|
Protection class
IP65
|
|
|
Mobile app
Can be used with or without testo Smart App
|
|
|
Spectral range
8 ... 14 μm
|
|
|

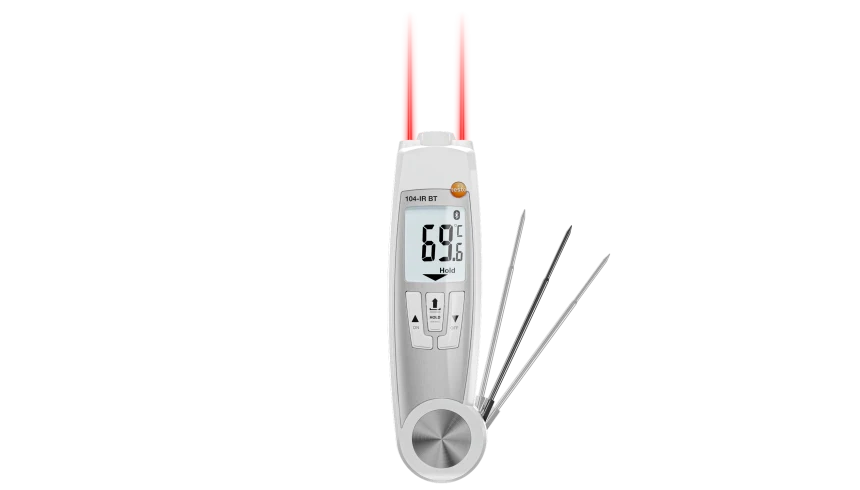

Laser
2 point laser
|
|
|
Optics
10:1 + opening diameter of the sensor (12 mm)
|
|
|
Wavelength
650nm
|
|
|
Power
<1mW
|
|
|
Dimensions (probe folded out)
281 x 48 x 21
|
|
|
Dimensions (probe not folded out)
178 x 48 x 21
|
|
|
Measurement value
Temperature °C / °F / °R
|
|
|
Standards
EN 13485; HACCP International; NSF
|
|
|
Battery type
2 AAA micro batteries
|
|
|
Storage temperature
-30 to +50 °C (without batteries up to +70 °C)
|
