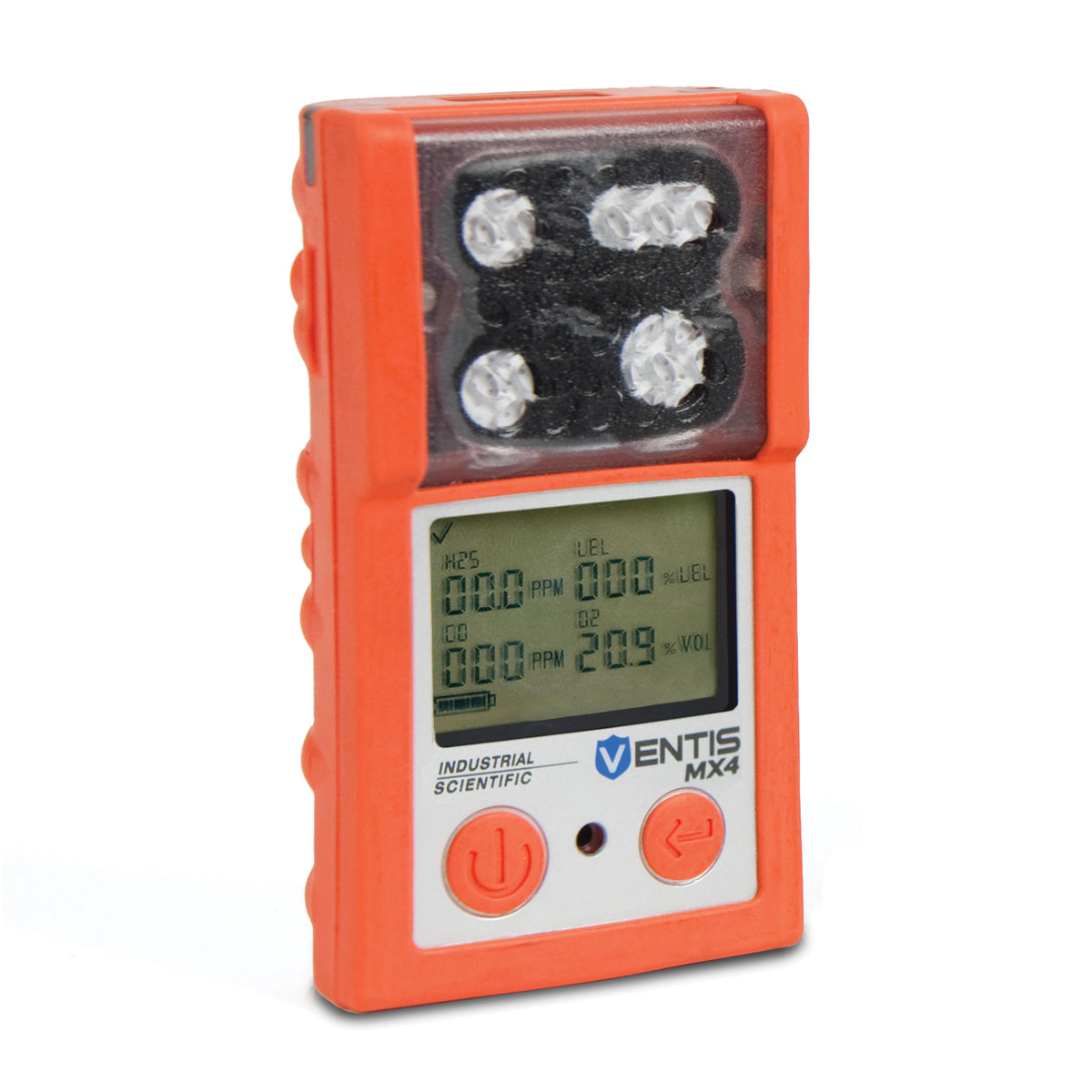

Ventis MX4 Multi-Gas Detector Safety Orange H2S/CO/O2/LEL
Availability:
Out Of Stock
Vendor:
BW Technologies
SKU:
GAS-VTS-K1231201y0z
Ventis MX4 Multi-Gas Detector Safety Orange H2S/CO/O2/LEL (VTS-K1231201y0z) Ventis is proud to provide safety all day, every day. Launched in 2011, the Ventis MX4 gas detector perfectly satisfies the need...
- $3,494.95
$3,495.00- $3,494.95
- Unit price
- per
Save $0.05
Description
xVentis MX4 Multi-Gas Detector Safety Orange H2S/CO/O2/LEL (VTS-K1231201y0z)
Ventis is proud to provide safety all day, every day. Launched in 2011, the Ventis MX4 gas detector perfectly satisfies the need for a small, reliable multi-gas instrument to be used in a variety of applications.
List of Benefits
- Super compact design
- Clear, easy to read display
- Can utilise other toxic sensors like SO2 or NO2
- Alternative run time options with extended life battery
- iNet compatible for hassle free compliance
- Integral or slide on pump options available
- High resolution H2S readouts (0.1ppm increments)
- CPO version available at a fraction of the cost
THE VENTIS™ MX4 MULTI-GAS DETECTOR TAKES YOUR GAS DETECTION PROGRAM TO THE NEXT LEVEL.
Detect from one to four gases with a wide range of sensor options
- Draw samples from up to 100 feet with an optional, integrated sampling pump
- Gain increased instrument visibility with a safety orange overmold
- Realize true portability with multigas protection in single-gas size
- Use the extended range battery for up to 20 hours (without pump)
- Discover a better way to do gas detection with the Ventis on iNet®
We understand that each of our clients have unique gas detection needs. That’s why GasTech is so pleased to be able to meet those needs with the highly configurable Ventis. When ordering the instrument, select a powerful, yet lightweight pump for easy monitoring in confined spaces; choose a safety orange overmold for increased visibility of your fleet; or pick from a range of sensors to ensure safety in a variety of environments.
| Specification | Detail Description |
|---|---|
| TYPICAL RANGE OF GASES DETECTED | |
| Combustible Gases | 0-100% LEL in 1% increments |
| Methane (CH4) | 0-5% of vol. in 0.01% increments |
| Oxygen (O2) | 0-30% of vol. in 0.1% increments |
| Carbon Monoxide (CO) | 0-1,000 ppm in 1 ppm increments |
| Hydrogen Sulfide (H2S) | 0-500 ppm in 0.1 ppm increments |
| Nitrogen Dioxide (NO2) | 0-150 ppm in 0.1 ppm increments |
| Sulfur Dioxide (SO2) | 0-150 ppm in 0.1 ppm increments |
| Case Material | Polycarbonate with Protective Rubber Overmold |
| Dimensions | 103 mm x 58 mm x 30 mm (4.1” x 2.3” x 1.2”) - Ventis, Lithium-ion Battery Version (typical) |
| 172 mm x 67 mm x 66 mm (6.8” x 2.6” x 2.6”) - Ventis with Pump, Lithium-ion Battery Version (typical) | |
| Weight | 182 g (6.4 oz) - Ventis, Lithium-ion Battery Version (typical) |
| 380 g (13.4 oz) - Ventis with Pump, Lithium-ion Battery Version (typical) | |
| Operating Temperature Range | -20°C- 50°C (-4°F-122°F) typical |
| Operating Humidity Range | 15%-95% Non-condensing (continuous) typical |
| Display/Readout | Backlit Liquid Crystal Display (LCD) |
| Power Source /Run Time | |
| Rechargeable Lithium-ion Battery Pack | (12 hours typical @ 20ºC) - Ventis |
| Rechargeable Extended-Range Lithium-ion Battery Pack | (20 hours typical @ 20ºC) - Ventis |
| (12 hours typical @ 20ºC) - Ventis with Pump | |
| Replaceable AAA Alkaline Battery Pack | (8 hours typical @ 20ºC) - Ventis |
| (4 hours typical @ 20ºC) - Ventis with Pump | |
| Alarms | Ultra-bright LEDs, loud audible alarm (95 dB at 30 cm) and vibrating alarm |
| Sensors | |
| Combustible gases/methane - Catalytic Diffusion, O2, CO, H2S, NO2, SO2 - Electrochemical | |
| CERTIFICATIONS | |
| UL | Class I, Division 1, Groups A B C D, T4; Zone 0, AEx ia IIC T4 Class II, Groups F G (Carbonaceous & Grain Dust); P66; IP67 |
| ATEX | Ex ia IIC T4 Ga and Ex ia I Ma; Equipment Group and Category II 1G and I M1; IP66; IP67 |
| IECEx | Ex ia IIC T4 Ga; IP66; IP67 |
| CSA | Class I, Division 1, Groups A B C D, T4; Ex d ia IIC T4 C22.2 No. 152 for %LEL reading only |
| ANZEx | Ex ia s Zone 0 I/IIC T4; IP66; IP67 |
| INMETRO | Ex d ia IIC T4 Gb; IP66; IP67 |
| KOSHA | Ex d ia IIC T4 |
| MSHA | 30 CFR Part 22; Permissible for Underground Mines; diffusion (without pump) li-ion versions only |
| China EX | Ex ia d IIC T4 Gb |
| China CMC | Metrology Approval |
| China MA | Approved for Underground Mines; diffusion (without pump) standard li-ion version only |
