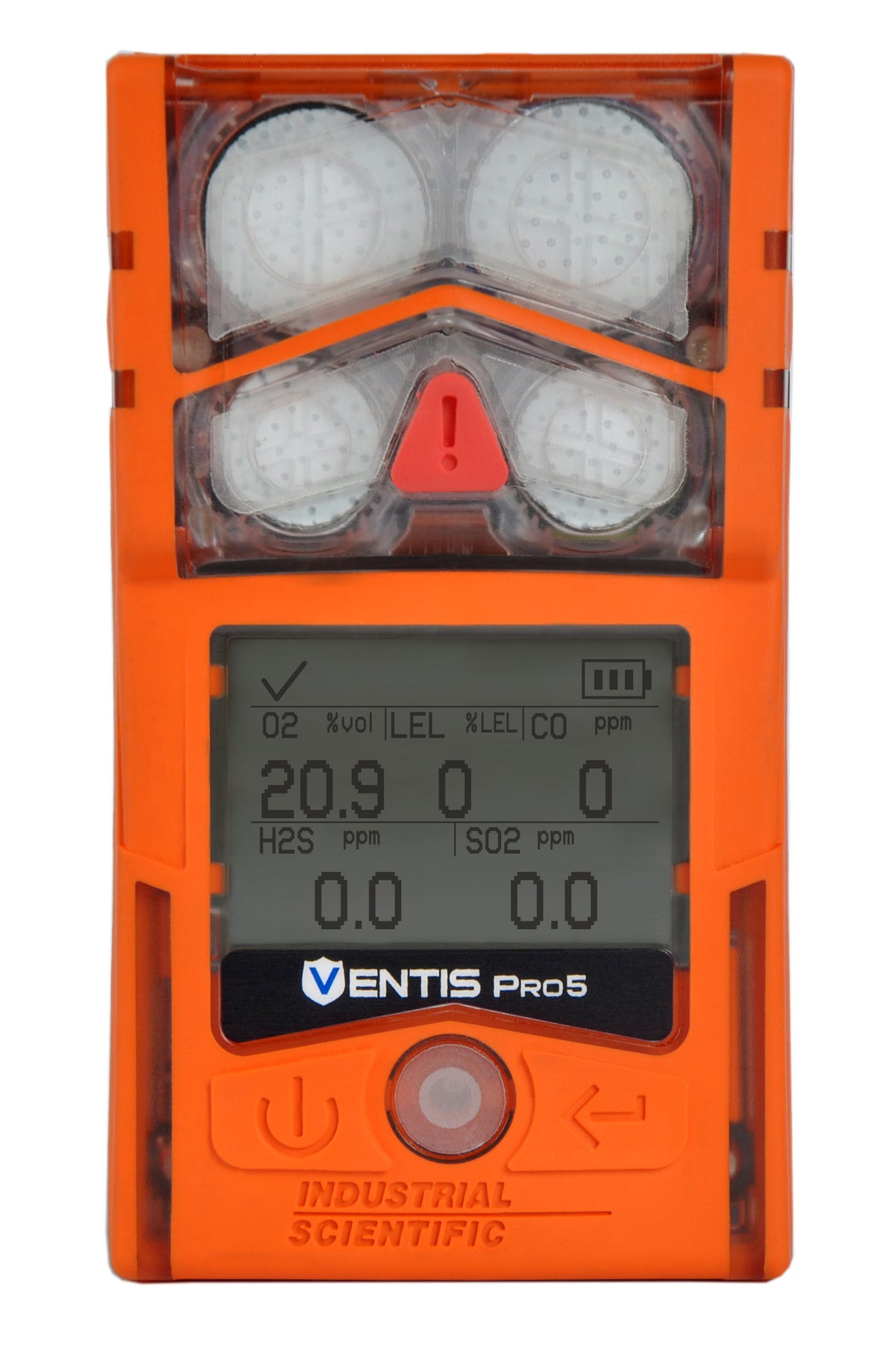

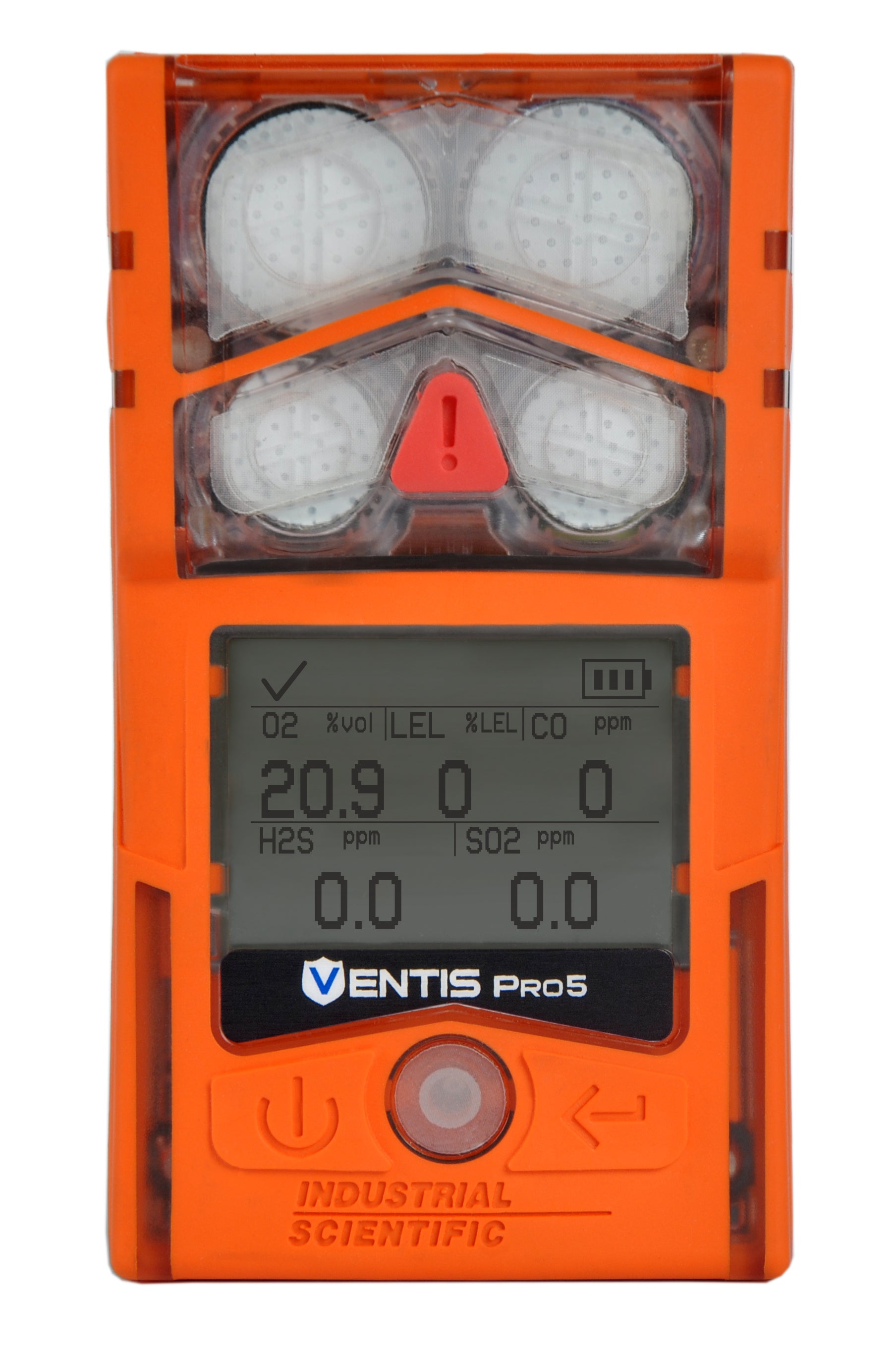

Ventis Pro5 5-Gas Detector Safety Orange H2S/CO/O2/LEL/SO2
Availability:
Out Of Stock
Vendor:
BW Technologies
SKU:
GAS-VP5-KJ532111y0z
Ventis MX4 Multi-Gas Detector Safety Orange H2S/CO/O2/LEL (VTS-K1231201y0z) Ventis Pro 5 BE READY FOR THE MOMENT In your line of work, a day on the job can turn from habit...
- $4,480.95
$4,480.95- $4,480.95
- Unit price
- per
Save $0.00
Description
xVentis MX4 Multi-Gas Detector Safety Orange H2S/CO/O2/LEL (VTS-K1231201y0z)
Ventis Pro 5
BE READY FOR THE MOMENT In your line of work, a day on the job can turn from habit to hazard in a single moment. Be ready for anything with the Ventis™ Pro Series Multi-Gas Monitors.
List of Benefits
Monitor up to five gases with flexible sensor configuration options
- Press the dedicated panic button to notify others when an emergency arises
- Set the man-down alarm to activate after a defined period of time without motion
- Industry’s highest rating of IP68 for protection against damage from dust and water
- Withstands submersion in 1.5 meters of water for one hour
- Replaceable dust filter cover allows you to change dirty filters without having to take apart the instrument
- Easily monitor unit locations and compliance with the iAssignTM feature
- Extended battery life option
- Easy to read display
With features that keep users safer than ever, the Ventis™ Pro5 makes owning and using gas detectors easy– all in a highly configurable and incredibly compact multi-gas monitor.
DEMAND MORE FLEXIBILITY FROM YOUR GAS DETECTOR
Stop carrying multiple devices to meet your gas detection needs. The Ventis Pro5 offers a variety of sensor options with flexible slot positions to help you detect combustible and toxic gases across a range of applications.
- Monitor up to five gases with flexible sensor configuration options
- Detect four toxic gases simultaneously in one compact, personal monitor
- Operate the device for personal protection or with a pump for confined space applications
- Save money by using existing compatible Ventis™ MX4 accessories
ALERT OTHERS IN EMERGENCY SITUATIONS
Save precious time in emergency situations by quickly alerting nearby workers when someone is in distress or has lost consciousness.
- Press the dedicated panic button to notify others when an emergency arises
- Set the man-down alarm to activate after a defined period of time without motion
DEPEND ON A RUGGED DESIGN
Keep your instruments in the field, not the shop, thanks to an all-new overmold design and Guaranteed for Life™ warranty.
- Industry’s only Guaranteed for Life warranty*
- Industry’s highest rating of IP68 for protection against damage from dust and water
- Withstands submersion in 1.5 meters of water for one hour
- Replaceable dust filter cover allows you to change dirty filters without having to take apart the instrument
- Raised plastic rail on the faceplate helps to protect sensors when instrument is face down
- High contact areas of the instrument are reinforced to prevent wear from friction
TRACK INSTRUMENTS & ALARMS
Address recurring alarms, identify hazards, and improve asset management by assigning users and sites to each gas monitor in real time with iAssign™ Technology.
- Quickly make sense of your data by knowing who had an instrument and where it was during an alarm
- Manage assets more efficiently by viewing iAssign data to see who last used an instrument before it went missing
- Keep instruments running optimally with maintenance reminders that prompt you to take actions such as docking or bump testing
- Save time and frustration by using the quick status screen to view battery level, serial number, and installed sensors without powering on the instrument
SIMPLIFY GAS DETECTION FOR YOUR USERS
Communicate key safety information to your team, simplify the user’s response when an instrument goes into alarm, and reduce nuisance alarms and false evacuations thanks to customizable text options.
- Focus on taking action in emergency situations with custom alarm action messages like “EVACUATE” or “VENTILATE”
- Increase hazard awareness with acknowledgeable gas alerts that provide early warning when gases reach a predefined level
- Reinforce a safety culture by communicating safety information or company-wide reminders with custom start-up messages
- See only the information needed in the field thanks to a flexible interface that lets you limit screens and options when in use
- Focus on the source and type of hazard in emergencies by viewing full-screen alarms
| Specification | Detail Description |
|---|---|
| TYPICAL RANGE OF GASES DETECTED | |
| CATALYTIC BEAD | |
| Combustible Gases | 0-100% LEL in 1% increments |
| Methane (CH4) | 0-5% of vol in 0.01% increments |
| ELECTROCHEMICAL | |
| Ammonia (NH3) | 0-500 ppm in 1 ppm increments |
| Carbon Monoxide (CO) | 0-2,000 ppm in 1 ppm increments |
| Carbon Monoxide (CO/H2 low) | 0-1,000 ppm in 1 ppm increments |
| Carbon Monoxide/Hydrogen Sulfide | DUOTOX |
| CO | 0-1,500 ppm in 1 ppm increments |
| H2S | 0-500 ppm in 0.1 ppm increments |
| Hydrogen Sulfide (H2S) | 0-500 ppm in 0.1 ppm increments |
| Hydrogen Cyanide (HCN) | 0-30 ppm in 0.1 ppm increments |
| Nitrogen Dioxide (NO2) | 0-150 ppm in 0.1 ppm increments |
| Oxygen (O2) | 0-30% of vol in 0.1% increments |
| Sulfur Dioxide (SO2) | 0-150 ppm in 0.1 ppm increments |
| INFRARED | |
| Carbon Dioxide/Hydrocarbons | Dual IR Cell |
| CO2 | 0-5% vol in 0.01% increments |
| HC | 0-100% LEL in 1% increments |
| Carbon Dioxide/Methane | Dual IR Cell |
| CO2 | 0-5% vol in 0.01% increments |
| CH4 | 0-5% vol in 0.01% increments |
| CH4 | 5-100% vol in 0.1% increments |
| GENERAL SPECIFICATIONS | |
| KEYPAD | Two buttons for operation. Dedicated panic button. |
| DATA LOG | At least 3 months at 10-second intervals |
| EVENT LOGGING | 60 alarm events |
| INGRESS PROTECTION | IP68 (submersion at 1.5 meters for 1 hour) |
| CASE MATERIAL | Polycarbonate with protective rubber overmold |
| DIMENSIONS | 104 x 58 x 36 mm (4.1 x 2.3 x 1.4 in) without pump |
| 172 x 67 x 65 mm (6.8 x 2.6 x 2.6 in) with pump | |
| WEIGHT | 200 g (7.05 oz), typical without pump |
| 390 g (13.76 oz), typical with pump | |
| TEMPERATURE RANGE | -40 °C to 50 °C (-40 °F to 122 °F) |
| HUMIDITY RANGE | 15%-95% non-condensing (continuous) |
| DISPLAY/READOUT | Backlit liquid crystal display (LCD) |
| POWER SOURCE/RUN TIME | Rechargeable lithium-ion battery pack with LEL |
| (12 hours typical @ 20 ºC) – without pump | |
| Rechargeable extended-range lithium-ion battery pack with LEL | |
| (24 hours typical @ 20 ºC) – without pump | |
| (18 hours typical @ 20 ºC) – with pump | |
| Rechargeable lithium-ion battery pack with IR | |
| (36 hours typical @ 20 ºC) – without pump | |
| Rechargeable extended-range lithium-ion battery pack with IR | |
| (72 hours typical @ 20 ºC) – without pump | |
| (32 hours typical @ 20 ºC) – with pump | |
| ALARMS | Four visual alarm LEDs (two red, two blue); 95 decibel (dB) audible alarm at a distance of 10 cm (3.94 in); Vibration alarm |
| SENSORS | Combustible Gases/Methane – Catalytic Bead. O2, CO, CO/H2 low, H2S, HCN, NH3, NO2, SO2 – Electrochemical. CO2/HC, CO/CH4 - Infrared |
| CERTIFICATIONS | |
| UL | Class I, Division 1, Groups A, B, C, and D, in the Temperature Class T4 |
| Class II, Division 1, Groups E, F, and G, in the Temperature Class T4 | |
| Class I, Zone 0, AEx ia IIC, in the Temperature Class T4 | |
| Class I, Zone 1, AEx d ia II C, in the Temperature Class T4, with IR sensor | |
| ATEX | Equipment Group and Category II 1G, Ex ia IIC, with the protection category Ga, in the Temperature Class T4 |
| Equipment Group and Category II 2G, Ex d ia IIC, with the protection category Gb, in the Temperature Class T4, with IR sensor | |
| IECEx | Class I, Zone 0, Ex ia IIC, with the protection technique Ga, in the Temperature Class T4 |
| Class I, Zone 1, Ex d ia IIC, with the protection technique Gb, in the | |
| Temperature Class T4, with IR sensor | |
| CSA | Class I, Division 1, Groups A, B, C, and D, in the Temperature Class T4 |
| Class I, Zone 1, Ex d ia IIC, in the Temperature Class T4 | |
| SUPPLIED WITH MONITOR | Calibration Cup (Ventis), Sample Tubing (Ventis with pump), Reference Guide |
| REFERENCE GUIDE LANGUAGE | English, French, Spanish, German |
| WARRANTY | Guaranteed for Life. Warranted for as long as the instrument is supported by Industrial Scientific Corporation (excludes sensors, batteries, and filters). O2, LEL, CO, and H2S sensors warranted for three years. All other sensors warranted for two years. Pumps and batteries are warranted for two years. |
